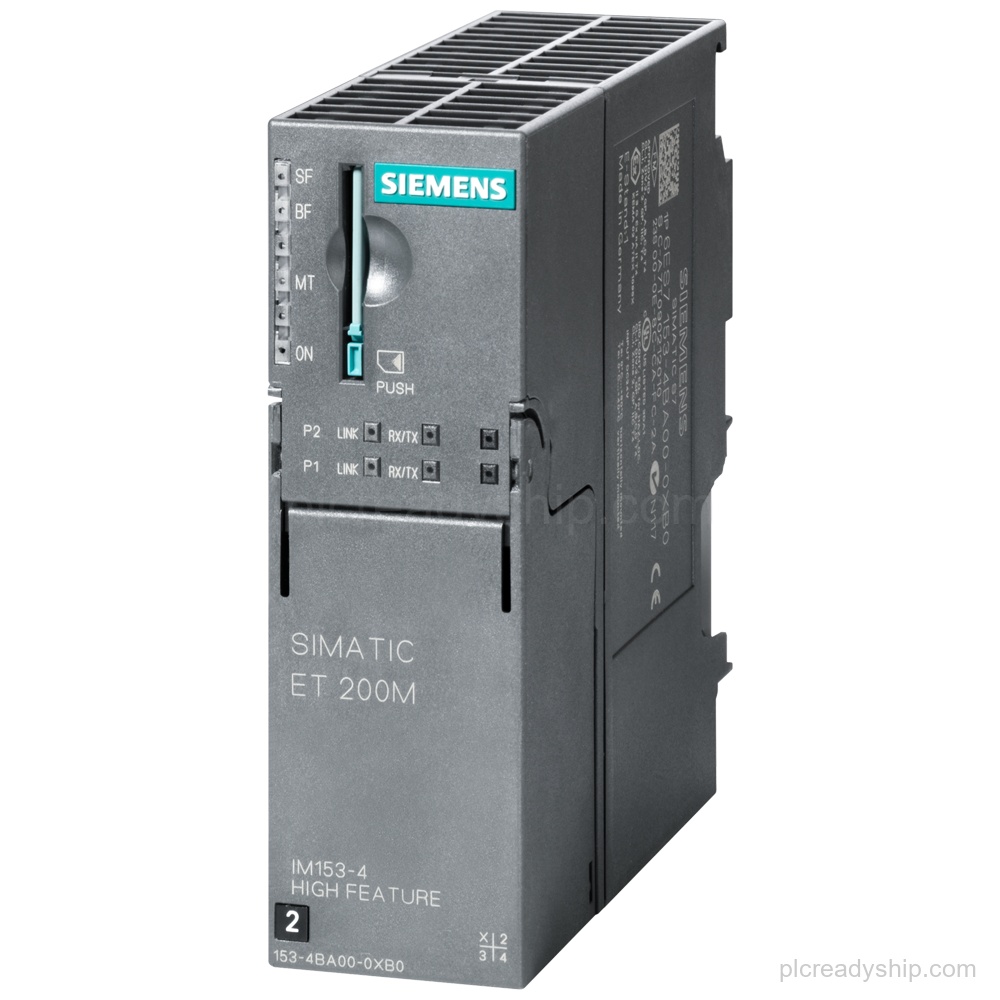

Key Features
- ET 200M interface module: SIPLUS ET 200M IM153-4 PN IO HF based on 6ES7153-4BA00-0XB0.
- PROFINET IO communication: Bus protocol/transmission protocol: PROFINET IO.
- Extended ET 200M connection: Connection ET 200M for max. 12 S7-300 modules.
- Environmental protection: Conformal coating with operating temperature range -40…+70 °C and start up -25 °C.
- Shared device support: Shared device supported, with up to 2 IO Controllers.
- Medium redundancy protocol: Supports medium redundancy protocol.
Technical Summary
| Product type designation | IM 153-4 PN HF |
|---|---|
| Based on | 6ES7153-4BA00-0XB0 |
| VendorID | 002AH |
| DeviceID | 0302H |
| Bus protocol/transmission protocol | PROFINET IO |
| Rated supply voltage | 24 V |
| Supply voltage lower limit | 20.4 V |
| Supply voltage upper limit | 28.8 V |
| Current consumption, max. | 600 mA; with 24 V DC supply |
| Inputs | 672 byte; Extended HART user data |
| Outputs | 192 byte |
| Number of modules per DP device interface, max. | 12 |
Applications
- ET 200M station integration: Connection of an ET 200M station to a PROFINET IO system.
- Module expansion in ET 200M: Connection for up to 12 S7-300 modules in an ET 200M setup.
- Shared-device network operation: Shared-device operation with up to 2 IO Controllers.
Frequently Asked Questions
What is the exact Siemens model for 6AG1153-4BA00-7XB0?
It is a SIPLUS ET 200M IM153-4 PN IO HF module based on 6ES7153-4BA00-0XB0.
Which protocol does this module use?
Bus protocol/transmission protocol: PROFINET IO.
What supply voltage does 6AG1153-4BA00-7XB0 require?
Rated supply voltage is 24 V, with a permissible range of 20.4 V to 28.8 V.
How many modules can be connected with this ET 200M interface module?
It supports connection of up to 12 S7-300 modules.
