Key Features

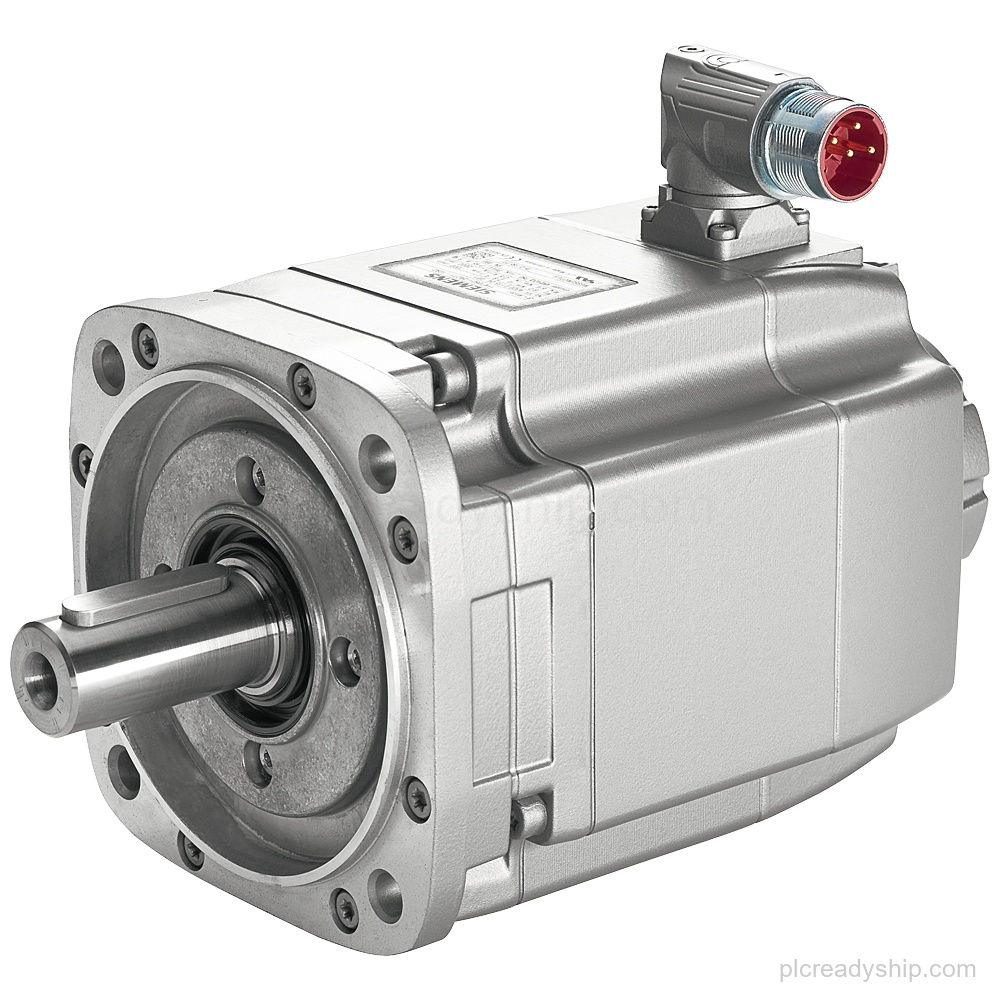

- SIMOTICS S synchronous motor 1FK7-HI: Product designation: SIMOTICS S synchronous motor 1FK7-HI.
- PN=3.1 kW: Power rating: PN=3.1 kW.
- UDC=600 V: DC link voltage: UDC=600 V.
- M0=20 Nm (100K): Torque: M0=20 Nm (100K).
- NN=3000 rpm: Nominal speed: NN=3000 rpm.
- IP65: Degree of protection: IP65.
Technical Summary
| Product designation | SIMOTICS S synchronous motor 1FK7-HI |
|---|---|
| PN | 3.1 kW |
| UDC | 600 V |
| M0 | 20 Nm (100K) |
| NN | 3000 rpm |
| Cooling design | naturally cooled |
| Mounting type | IMB 5 (IM V1, IM V3) |
| Power connector | flange 1 power connector rotatable |
| Encoder | absolute encoder 20-bit +12- bit multi-turn |
| Encoder interface | DRIVE-CLiQ interface |
| Shaft | shaft with feather key, tolerance N |
| Degree of protection | IP65 |
Frequently Asked Questions
What is Siemens 1FK7084-3BF71-1RB1?
It is a SIMOTICS S synchronous motor 1FK7-HI.
What are the main ratings of 1FK7084-3BF71-1RB1?
PN=3.1 kW, UDC=600 V, M0=20 Nm (100K), and NN=3000 rpm.
What feedback interface does 1FK7084-3BF71-1RB1 use?
It has an absolute encoder 20-bit +12- bit multi-turn with DRIVE-CLiQ interface.
What mechanical configuration is listed for 1FK7084-3BF71-1RB1?
It is naturally cooled, uses IMB 5 (IM V1, IM V3), and has a shaft with feather key, tolerance N.
What lifecycle status is shown for 1FK7084-3BF71-1RB1?
Active Product.
