Key Features
- Electrical and performance ratings: PN=2.6kW, UDC=600V, M0=16Nm (100K), and NN=2000rpm.
- Cooling and mounting: Naturally cooled, FRAME SIZE IMB 5 (IM V1, IM V3), FLANGE 1.
- Feedback and connection details: KTY TEMPERATURESENSOR, POWER CONNECTOR ROTATABLE, RESOLVER 2-POLE (RESOLVER P=1).
- Mechanical configuration: Plain shaft, tolerance N, without holding brake.
- Protection rating: Degree of protection IP64.
Technical Summary

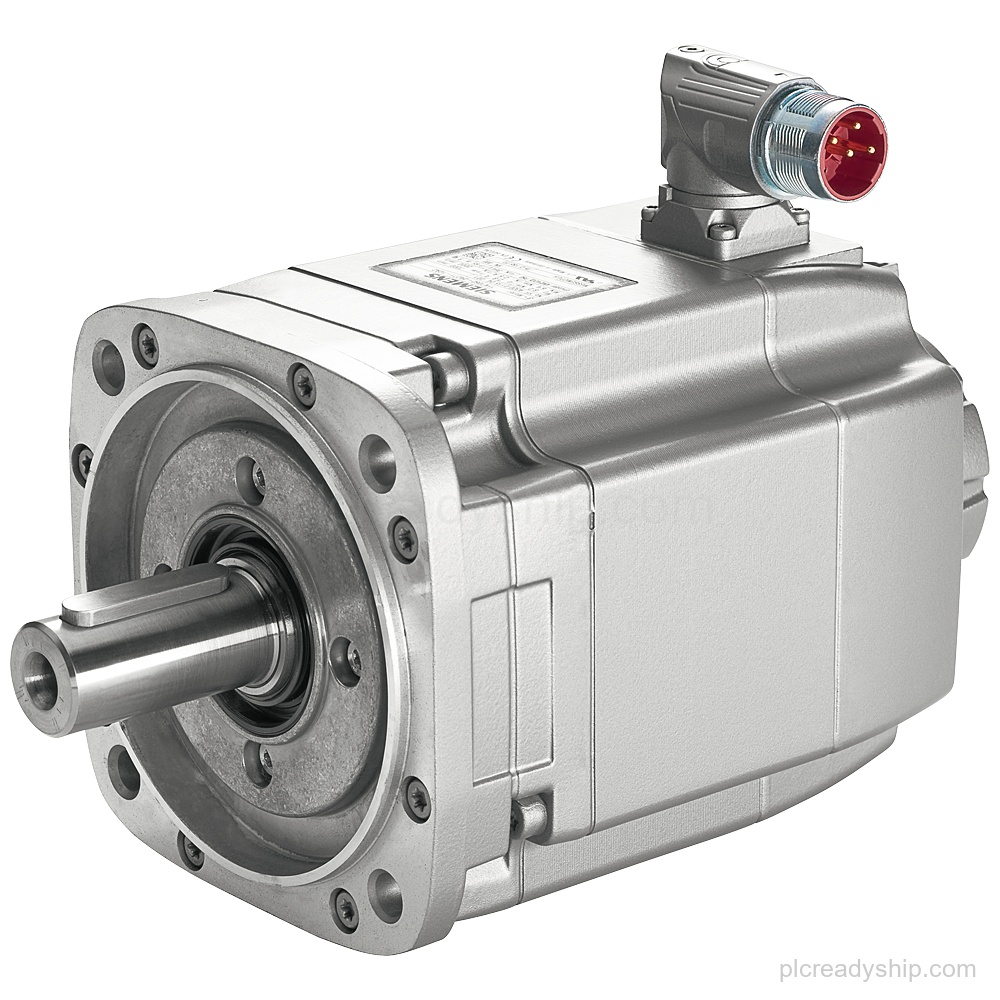

| Product type | SIMOTICS S Synchronous motor |
|---|---|
| PN | 2.6kW |
| UDC | 600V |
| M0 | 16Nm (100K) |
| NN | 2000rpm |
| Cooling | Naturally cooled |
| Mounting | FRAME SIZE IMB 5 (IM V1, IM V3) |
| Connector | POWER CONNECTOR ROTATABLE |
| Feedback | RESOLVER 2-POLE (RESOLVER P=1) |
| Shaft | plain shaft, tolerance N |
| Holding brake | without holding brake |
| Protection | Degree of protection IP64 |
Frequently Asked Questions
What is the exact Siemens model and product type?
1FK7083-2AC71-1TG0 is a SIMOTICS S synchronous motor.
What are the key electrical and performance ratings for 1FK7083-2AC71-1TG0?
PN=2.6kW, UDC=600V, M0=16Nm (100K), and NN=2000rpm.
What feedback and connection details are specified for 1FK7083-2AC71-1TG0?
It uses a RESOLVER 2-POLE (RESOLVER P=1), includes a KTY TEMPERATURESENSOR, and has a POWER CONNECTOR ROTATABLE.
What mechanical configuration and protection rating does 1FK7083-2AC71-1TG0 have?
It has a plain shaft with tolerance N, without holding brake, and Degree of protection IP64.
