Key Features

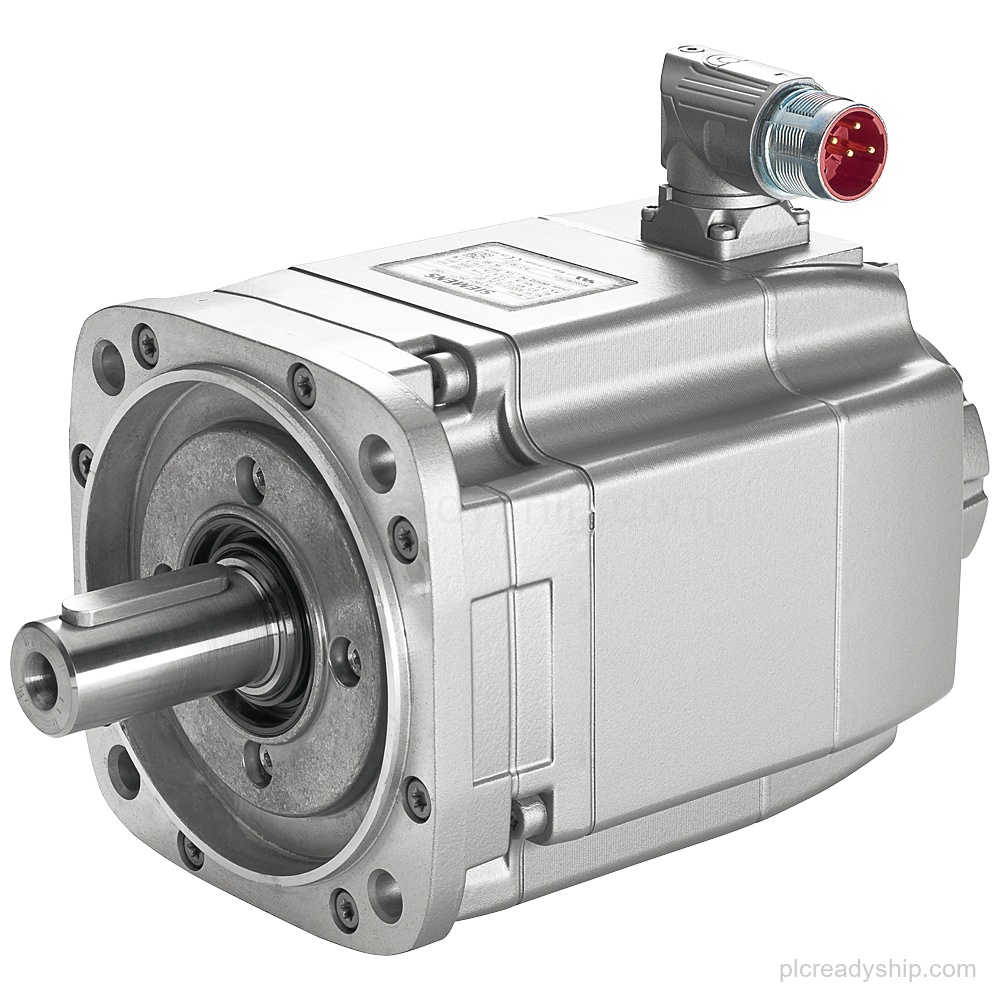

- High-dynamic synchronous motor: SIMOTICS S Synchronous motor 1FK7-HD.
- Performance ratings: PN=2.4kW, UDC=600V, M0=12Nm (100K), and NN=4500rpm.
- Feedback and brake: Absolute encoder single-turn 20 bit with DRIVE-CLiQ interface (ENCODER AS20DQI), with holding brake.
- Mechanical and protection details: Naturally cooled, plain shaft, and Degree of protection IP65.
- Connection and mounting details: Connector size M23, electrical connectors for signals and power rotatable, and IM B5 (IM V1, IM V3).
Technical Summary
| Product type | SIMOTICS S Synchronous motor 1FK7-HD |
|---|---|
| PN | 2.4kW |
| UDC | 600V |
| M0 (100K) | 12Nm |
| NN | 4500rpm |
| Cooling | Naturally cooled |
| Encoder system | Encoder AS20DQI: absolute encoder single-turn 20 bits |
| Holding brake | with holding brake |
| Degree of protection | IP65 |
| Connector size | M23 |
| Shaft end | Plain shaft |
| Design acc. to Code I | IM B5 (IM V1, IM V3) |
Frequently Asked Questions
What is Siemens 1FK7064-4CH71-1QH1?
It is a SIMOTICS S Synchronous motor 1FK7-HD.
What are the main ratings of 1FK7064-4CH71-1QH1?
PN=2.4kW, UDC=600V, M0=12Nm (100K), and NN=4500rpm.
What encoder is included with 1FK7064-4CH71-1QH1?
It has an absolute encoder single-turn 20 bit with DRIVE-CLiQ interface (ENCODER AS20DQI).
What mechanical and protection details are listed for 1FK7064-4CH71-1QH1?
It is naturally cooled, has a plain shaft, a holding brake, Degree of protection IP65, connector size M23, and IM B5 (IM V1, IM V3).
