Key Features
- Power and speed: PN=1.9 kW; NN=3000 rpm; Rated speed (100 K): 3,000 rpm.
- Torque and electrical data: M0=8.5 Nm (100K); Rated torque (100 K): 6.0 Nm; Rated current: 4.0 A; UDC=600 V.
- Feedback and connection: Absolute encoder 20-bit +12-bit multi-turn with DRIVE-CLiQ interface; encoder AM20DQI; connector size M23; electrical connectors for signals and power rotatable.
- Mechanical design: Naturally cooled design; IM B5 (IM V1, IM V3); shaft with feather key; without holding brake.
- Protection and lifecycle: Degree of protection IP65; Active Product.
Technical Summary

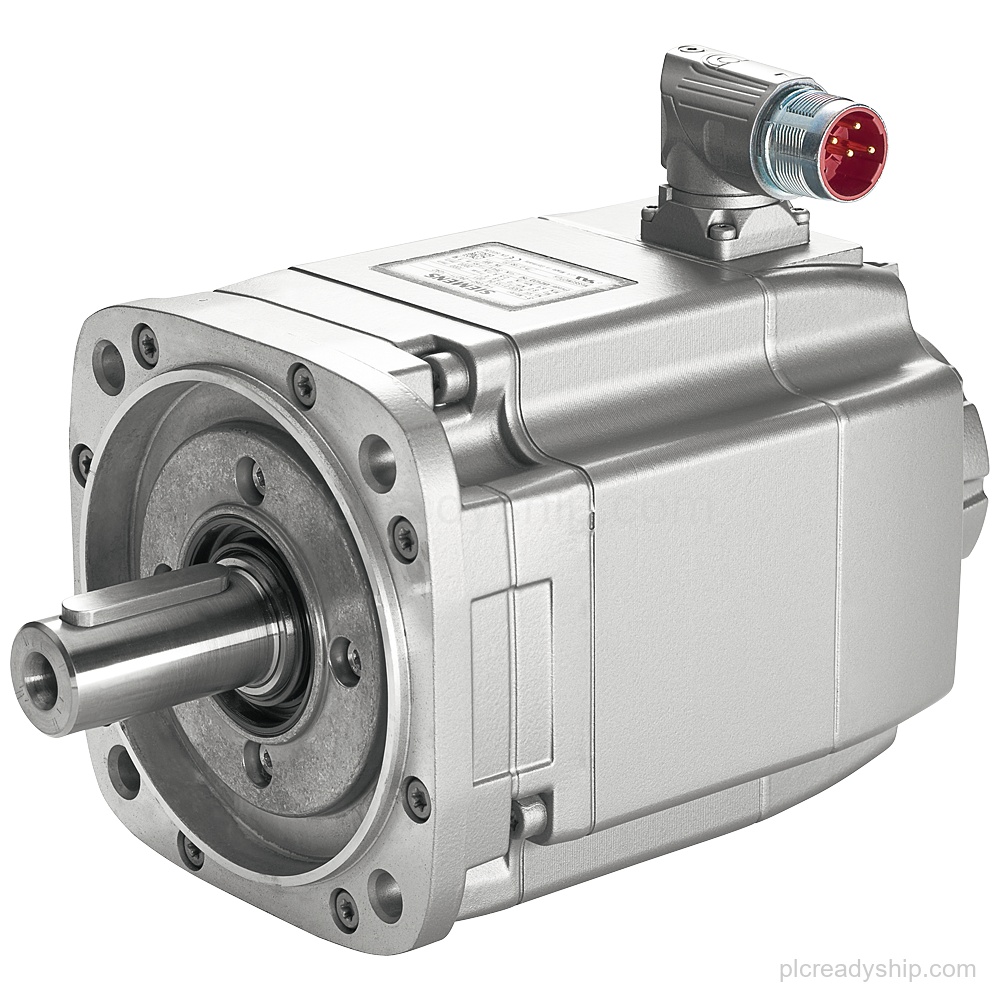

| Product type | SIMOTICS S synchronous motor |
|---|---|
| Power | PN=1.9 kW |
| Voltage | UDC=600 V |
| Torque | M0=8.5 Nm (100K) |
| Rated speed | 3,000 rpm |
| Rated current | 4.0 A |
| Cooling | Natural cooling |
| Design acc. to Code I | IM B5 (IM V1, IM V3) |
| Connector size | M23 |
| Encoder system | Encoder AM20DQI: absolute encoder 20 bits (resolution 1048576, encoder-internal 512 S/R) + 12 bits multi-turn (traversing range 4096 revolutions) |
| Degree of protection | IP65 |
Frequently Asked Questions
What is Siemens 1FK7062-2AF71-1RA1?
It is a SIMOTICS S synchronous motor.
What are the rated power and rated speed of 1FK7062-2AF71-1RA1?
PN=1.9 kW and NN=3000 rpm. Rated speed (100 K) is 3,000 rpm.
Which encoder is fitted on 1FK7062-2AF71-1RA1?
It has an absolute encoder 20-bit +12-bit multi-turn with DRIVE-CLiQ interface, encoder AM20DQI.
What mechanical design details are listed for 1FK7062-2AF71-1RA1?
It has natural cooling, IM B5 (IM V1, IM V3), a feather key shaft, and no holding brake.
What protection and connection details are listed for 1FK7062-2AF71-1RA1?
The degree of protection is IP65, the connector size is M23, and the electrical connectors for signals and power are rotatable.
