Key Features
- 2.0 kW optimum power: Optimum power: 2.0 kW.
- 4,500 rpm rated speed: Rated speed (100 K): 4,500 rpm.
- Absolute encoder with DRIVE-CLiQ: Encoder AS20DQI: absolute encoder single-turn 20 bits with DRIVE-CLiQ interface.
- Natural cooling: Cooling: Natural cooling.
- IP64 protection: Degree of protection: IP64.
- IM B5 mounting: Design acc. to Code I: IM B5 (IM V1, IM V3).
Technical Summary
| Product type | SIMOTICS S Synchronous motor 1FK7-HD |
|---|---|
| Optimum power | 2.0 kW |
| Rated speed (100 K) | 4,500 rpm |
| Rated current | 6.2 A |
| Static torque (100 K) | 6.40 Nm |
| Max. permissible speed (mech.) | 7,500 rpm |
| Cooling | Natural cooling |
| Encoder system | Encoder AS20DQI: absolute encoder single-turn 20 bits |
| Degree of protection | IP64 |
| Design acc. to Code I | IM B5 (IM V1, IM V3) |
| Holding brake | without holding brake |
Applications
- SINAMICS S120 drive integration: Motor integration in SINAMICS S120 drive systems.
Frequently Asked Questions
What is Siemens 1FK7061-4CH71-1QA0?

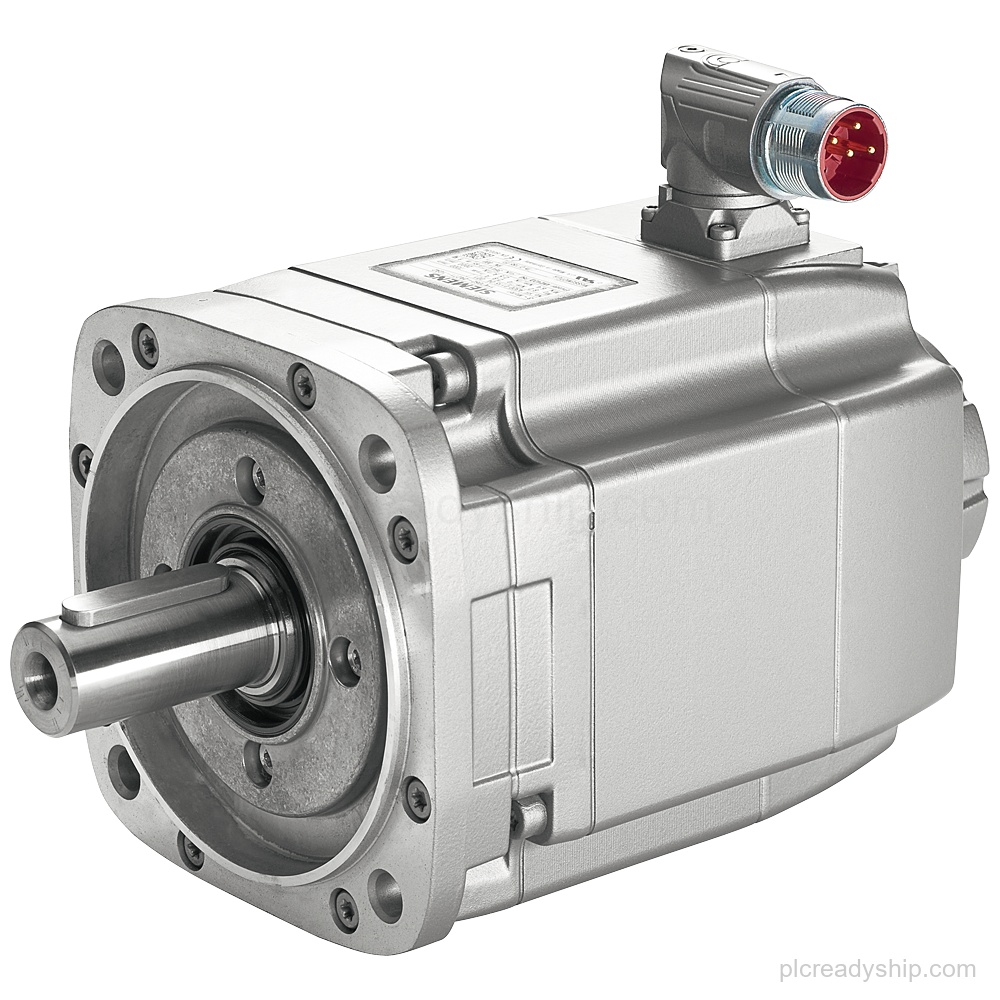

It is a SIMOTICS S synchronous motor 1FK7-HD.
What is the rated speed of 1FK7061-4CH71-1QA0?
Rated speed (100 K): 4,500 rpm.
Which encoder does 1FK7061-4CH71-1QA0 use?
Encoder AS20DQI: absolute encoder single-turn 20 bits with DRIVE-CLiQ interface.
What mounting and protection details are listed for 1FK7061-4CH71-1QA0?
Design acc. to Code I: IM B5 (IM V1, IM V3) and degree of protection IP64.
