Key Features

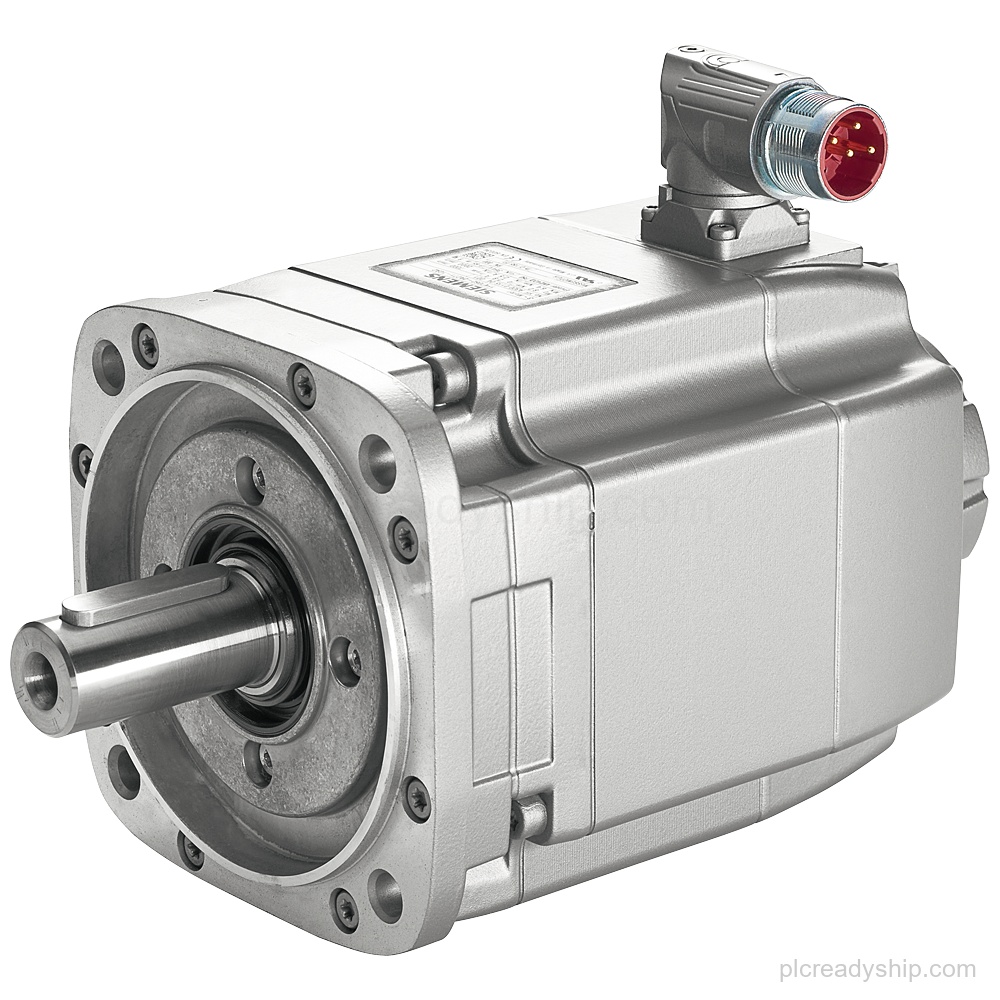

- Motor designation: SIMOTICS S synchronous motor 1FK7-HD.
- Performance rating: PN=2kW; NN=4500rpm; M0=6.4Nm (100K).
- Feedback and interface: Absolute encoder single-turn 24 bit with DRIVE-CLiQ interface (ENCODER AS24DQI).
- Mechanical configuration: Plain shaft, tolerance N; without holding brake.
- Protection and cooling: Degree of protection IP64; naturally cooled.
- Connection and mounting: Power connector rotatable; FRAME SIZE IMB 5 (IM V1, IM V3).
Technical Summary
| Product designation | 1FK7061-4CH71-1BG0 |
|---|---|
| Motor type | Permanent-magnet synchronous motor |
| High Dynamic | High Dynamic |
| Optimum power | 2.0 kW |
| Rated speed (100 K) | 4,500 rpm |
| Static torque (100 K) | 6.40 Nm |
| Rated current | 6.2 A |
| Maximum current | 26.5 A |
| Encoder system | Encoder AS24DQI: absolute encoder single-turn 24 bits |
| Cooling | Natural cooling |
| Degree of protection | IP64 |
| Holding brake | without holding brake |
Frequently Asked Questions
What is Siemens 1FK7061-4CH71-1BG0?
It is a SIMOTICS S synchronous motor 1FK7-HD.
What are the key performance ratings of 1FK7061-4CH71-1BG0?
PN=2kW, NN=4500rpm, and M0=6.4Nm (100K).
Which feedback system is built into 1FK7061-4CH71-1BG0?
It uses an absolute encoder single-turn 24 bits with DRIVE-CLiQ interface (ENCODER AS24DQI).
What mechanical configuration does 1FK7061-4CH71-1BG0 have?
It has a plain shaft, tolerance N, without holding brake, and FRAME SIZE IMB 5 (IM V1, IM V3).
What should I confirm before ordering 1FK7061-4CH71-1BG0?
Confirm stock and dispatch conditions, requested quantity, and destination before ordering.
