Key Features
- 1.7 kW output: Optimum power: 1.7 kW.
- 3,000 rpm speed: Rated speed (100 K): 3,000 rpm.
- Absolute encoder with DRIVE-CLiQ: Encoder AM24DQI: absolute encoder 24 bits + 12 bits multi-turn with DRIVE-CLiQ interface.
- IP64 protection: Degree of protection: IP64.
- Natural cooling: Cooling: Natural cooling.
- Rotatable power and signal connectors: Electrical connectors for signals and power rotatable.
Technical Summary

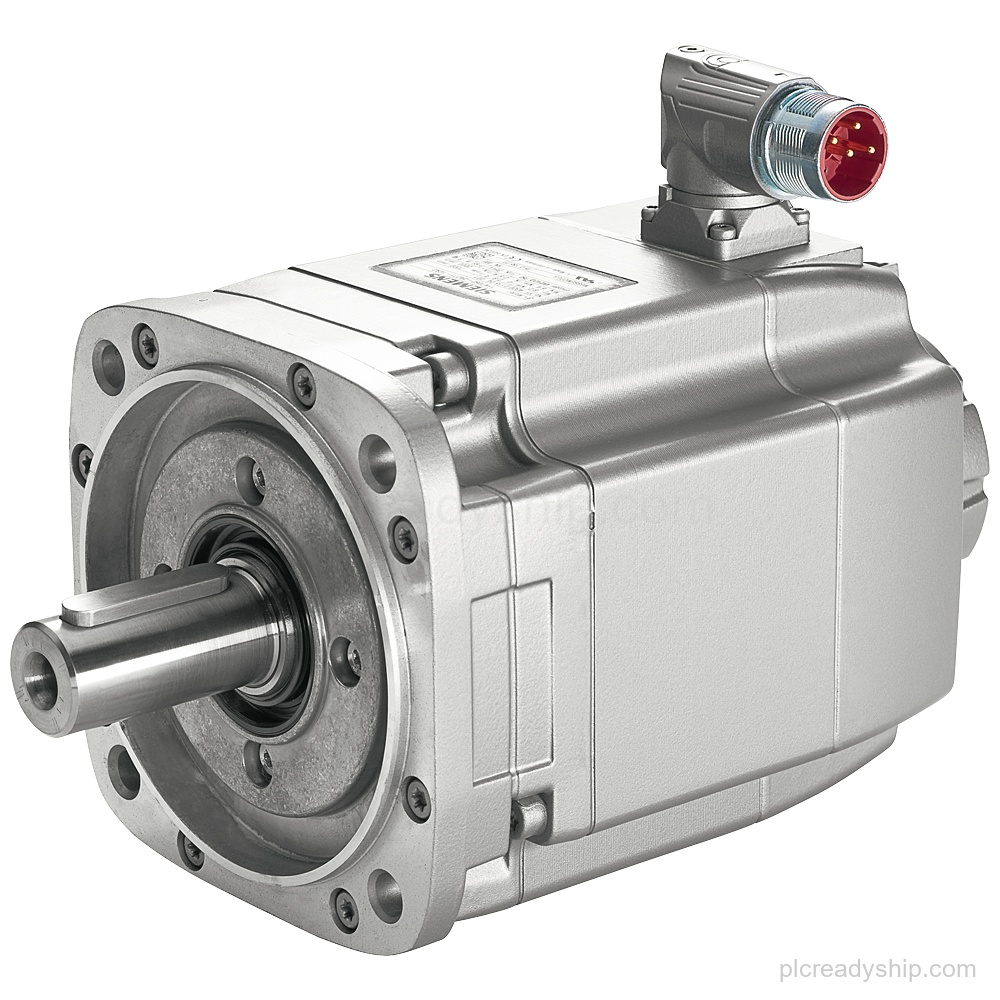

| Product type | SIMOTICS S Synchronous motor 1FK7-HD |
|---|---|
| Optimum power | 1.7 kW |
| Rated speed (100 K) | 3,000 rpm |
| Rated torque (100 K) | 5.4 Nm |
| Maximum torque | 17.3 Nm |
| Rated current | 5.3 A |
| Encoder system | Encoder AM24DQI: absolute encoder 24 bits (resolution 16777216, encoder-internal 2048 S/R) + 12 bits multi-turn (traversing range 4096 revolutions) |
| Cooling | Natural cooling |
| Degree of protection | IP64 |
| Connector size | M23 |
| Design acc. to Code I | IM B5 (IM V1, IM V3) |
| Shaft end | Feather key |
Applications
- SINAMICS S120 integration: Servomotor for use with SINAMICS S120.
Frequently Asked Questions
What is Siemens 1FK7061-4CF71-1CA0?
It is a SIMOTICS S synchronous motor, 1FK7-HD.
What are the rated power and speed of 1FK7061-4CF71-1CA0?
Optimum power is 1.7 kW and rated speed (100 K) is 3,000 rpm.
Which encoder does 1FK7061-4CF71-1CA0 use?
It uses encoder AM24DQI: absolute encoder 24 bits + 12 bits multi-turn with DRIVE-CLiQ interface.
What mounting and protection details are listed for 1FK7061-4CF71-1CA0?
Design acc. to Code I is IM B5 (IM V1, IM V3), and degree of protection is IP64.
