Key Features
- Power and speed: PN=1.2kW, NN=4500rpm, and maximum speed 9,000 rpm.
- Feedback and interface: Resolver R15DQ: resolver 15 bits (resolution 32768, internal multi-pole) with DRIVE-CLiQ interface.
- Mechanical configuration: IM B5 (IM V1, IM V3) design with plain shaft, connector size M23, and rotatable connectors for signals and power.
- Protection and cooling: Naturally cooled and degree of protection IP64.
- Brake and supply: With holding brake, DC 24 V ± 10 % power supply voltage, and holding torque 4.0 Nm.
Technical Summary
| Product type | SIMOTICS S Synchronous motor |
|---|---|
| Power | PN=1.2kW |
| Rated voltage | UDC=600V |
| Rated torque | M0=3.5Nm (100K) |
| Rated speed | NN=4500rpm |
| Feedback system | Resolver R15DQ: resolver 15 bits (resolution 32768, internal multi-pole) |
| Interface | DRIVE-CLiQ interface |
| Cooling | Naturally cooled |
| Mounting design | IM B5 (IM V1, IM V3) |
| Connector size | M23 |
| Degree of protection | IP64 |
| Holding brake | with holding brake |
Frequently Asked Questions
What is Siemens 1FK7043-4CH71-1UH0?

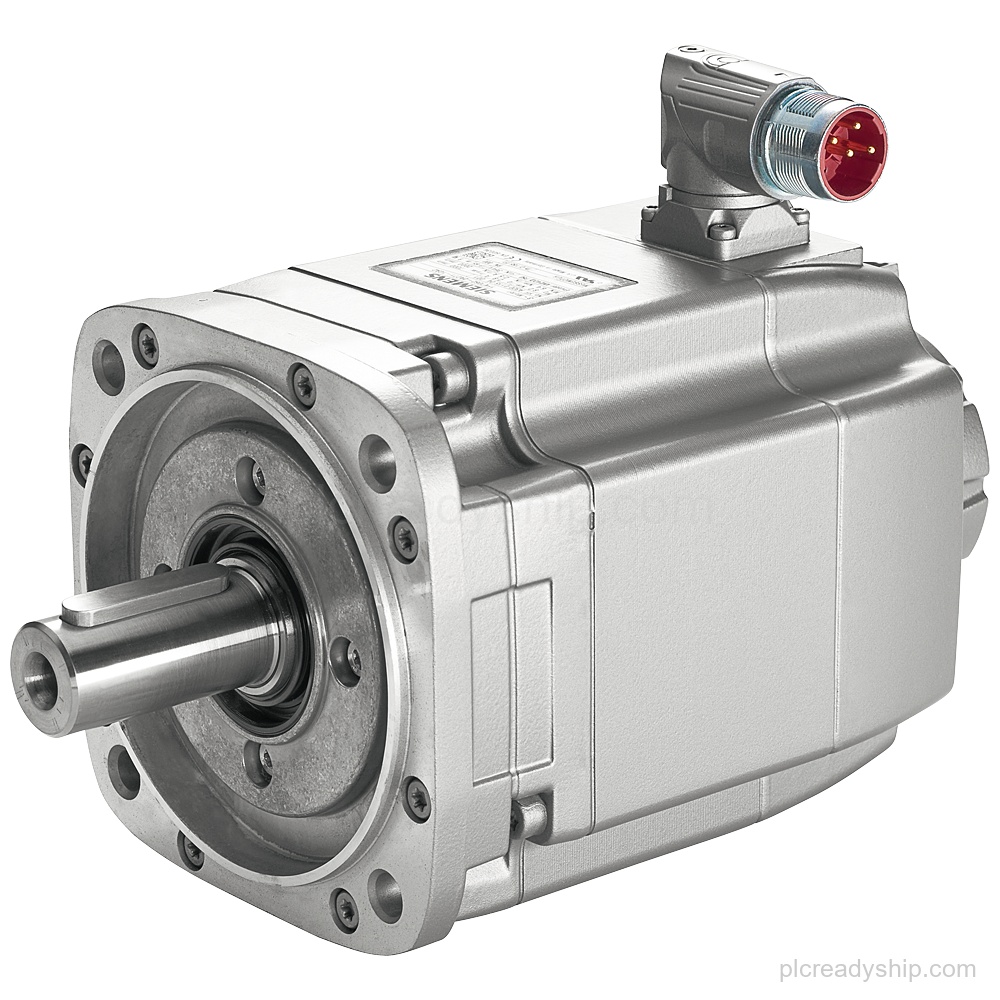

It is a SIMOTICS S synchronous motor.
What are the rated power and rated speed of 1FK7043-4CH71-1UH0?
PN=1.2kW and NN=4500rpm.
What feedback and interface does the 1FK7043-4CH71-1UH0 motor have?
It has Resolver R15DQ: resolver 15 bits (resolution 32768, internal multi-pole) and a DRIVE-CLiQ interface.
What mounting, shaft, and protection details are listed for 1FK7043-4CH71-1UH0?
It has IM B5 (IM V1, IM V3) design, a plain shaft, and degree of protection IP64.
