Key Features
- Optimum power: 1.2 kW
- Rated speed: 4,500 rpm
- Absolute encoder: Encoder AS24DQI: absolute encoder single-turn 24 bits
- Protection degree: IP65
- Cooling: Natural cooling
- Holding brake: without holding brake
Technical Summary
| Product type | SIMOTICS S Synchronous motor |
|---|---|
| Optimum power | 1.2 kW |
| Rated speed (100 K) | 4,500 rpm |
| Static torque (100 K) | 3.50 Nm |
| Rated current | 3.3 A |
| UDC | 600V |
| Encoder system | Encoder AS24DQI: absolute encoder single-turn 24 bits |
| Temperature monitoring | Pt1000 temperature sensor |
| Cooling | Natural cooling |
| Degree of protection | IP65 |
| Design acc. to Code I | IM B5 (IM V1, IM V3) |
Applications
- Drive feedback integration: Absolute encoder single-turn 24 bits with DRIVE-CLiQ interface.
- Power and signal connection: Rotatable connectors for signals and power.
Frequently Asked Questions

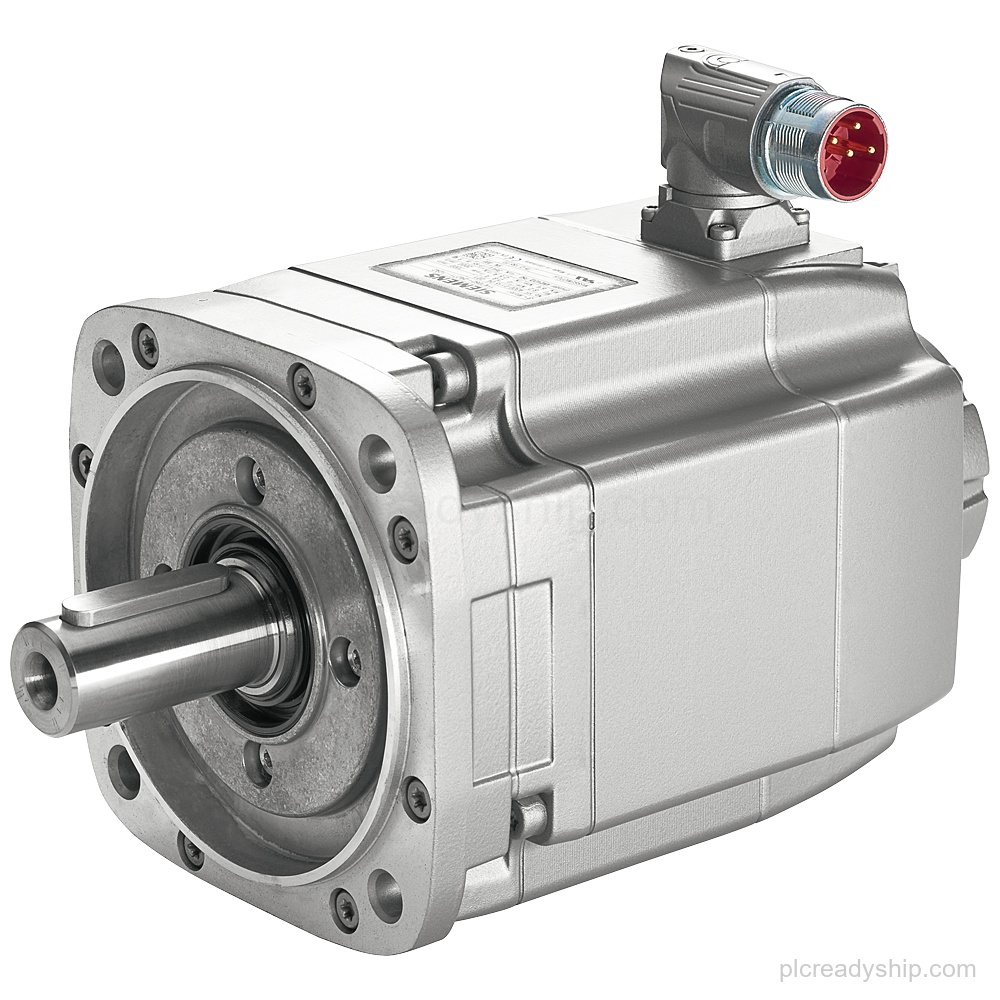

What is Siemens 1FK7043-4CH71-1BA1?
It is a SIMOTICS S synchronous motor.
What are the key performance ratings of 1FK7043-4CH71-1BA1?
Optimum power is 1.2 kW, rated speed (100 K) is 4,500 rpm, and static torque (100 K) is 3.50 Nm.
Which feedback system is included with 1FK7043-4CH71-1BA1?
It includes Encoder AS24DQI: absolute encoder single-turn 24 bits with DRIVE-CLiQ interface.
What protection and cooling details are specified for 1FK7043-4CH71-1BA1?
The motor has IP65 degree of protection and natural cooling.
