Key Features
- Performance data: PN=0.94kW, UDC=300V, M0=3. 3Nm (100K), and NN=3000rpm.
- Feedback system: Absolute encoder 24 BIT + 12 BIT MULTITURN with DRIVE-CLIQ INTERFACE (ENCODER AM24DQI).
- Mechanical configuration: Naturally cooled FRAME SIZE IMB 5 (IM V1, IM V3) with plain shaft and without holding brake.
- Connections and protection: POWER CONNECTOR ROTATABLE with connectors for signals and power rotatable, Connector size M23, and Degree of protection IP65.
- Lifecycle and weight: Active Product with net weight of 6,001 Kg.
Technical Summary

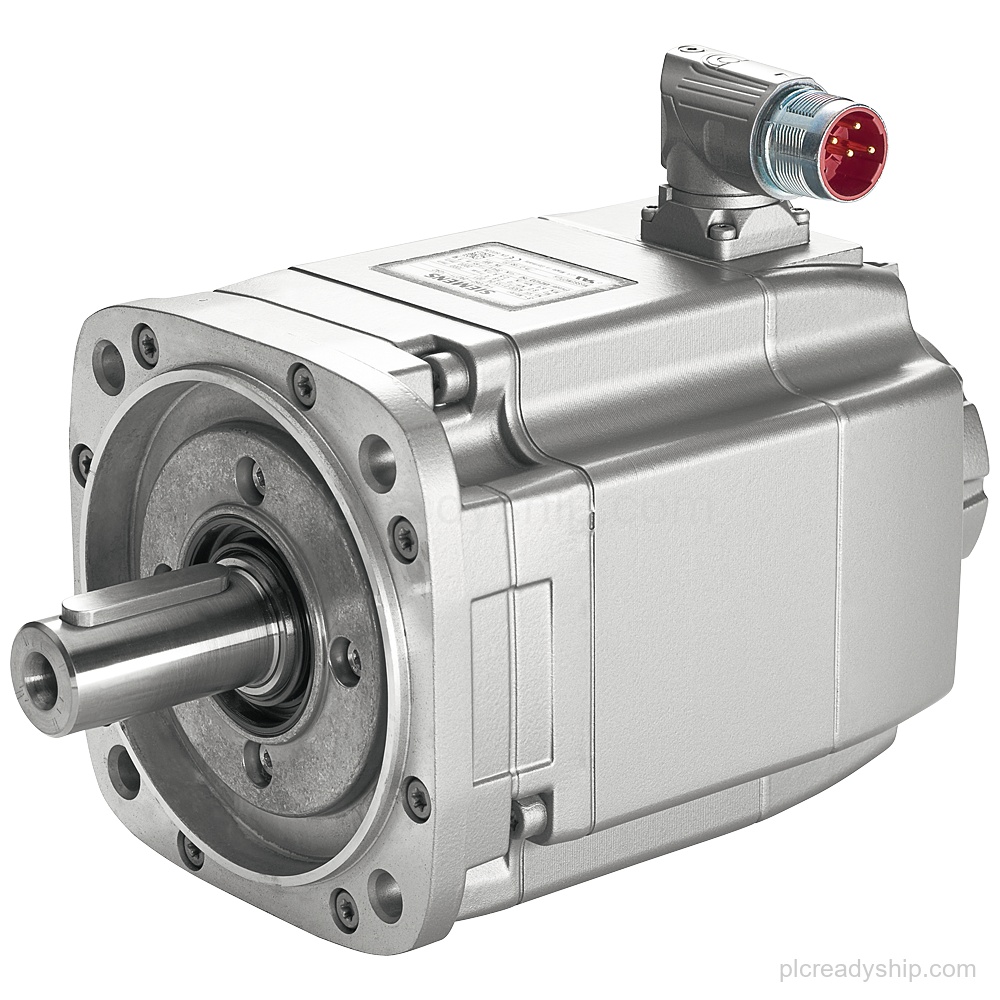

| Product type | SIMOTICS S Synchronous motor 1FK7-HD |
|---|---|
| Rated power | PN=0.94kW |
| Rated voltage | UDC=300V |
| Rated torque | M0=3. 3Nm (100K) |
| Rated speed | NN=3000rpm |
| Cooling | Naturally cooled |
| Design | IM B5 (IM V1, IM V3) |
| Power connector | POWER CONNECTOR ROTATABLE |
| Encoder | ABSOLUTE ENCODER 24 BIT + 12 BIT MULTITURN WITH DRIVE-CLIQ INTERFACE (ENCODER AM24DQI) |
| Shaft | plain shaft, tolerance N |
| Holding brake | without holding brake |
| Degree of protection | IP65 |
Frequently Asked Questions
What is Siemens 1FK7043-4CF21-1CG1?
It is a SIMOTICS S synchronous motor 1FK7-HD.
What are the rated power and rated speed of 1FK7043-4CF21-1CG1?
PN=0.94kW and NN=3000rpm.
Which feedback system is used on 1FK7043-4CF21-1CG1?
It uses an absolute encoder 24 BIT + 12 BIT MULTITURN with DRIVE-CLIQ INTERFACE (ENCODER AM24DQI).
What mechanical configuration should be checked before ordering 1FK7043-4CF21-1CG1?
Confirm the naturally cooled design, IM B5 (IM V1, IM V3) mounting, plain shaft, and without holding brake execution.
