Key Features
- Rated output and speed: PN=0.38kW; NN=3000rpm.
- Feedback and interface: Resolver multi-pole with DRIVE-CLiQ interface.
- Mechanical and protection configuration: Plain shaft, without holding brake, cooling: Natural cooling, degree of protection IP65 and DE flange IP67.
- Mounting and connector details: Design acc. to Code I: IM B5 (IM V1, IM V3); connector size M23; electrical connectors for signals and power rotatable.
Technical Summary
| Product type | SIMOTICS S Synchronous motor |
|---|---|
| Rated output | PN=0.38kW |
| Supply voltage | UDC=300V |
| Rated torque | M0=1.3Nm (100K) |
| Rated speed | NN=3000rpm |
| Cooling | Naturally cooled |
| Interface | DRIVE-CLiQ interface |
| Encoder system | Resolver R15DQ: resolver 15 bits (resolution 32768, internal multi-pole) |
| Shaft end | Plain shaft |
| Holding brake | without holding brake |
| Degree of protection | IP65 and DE flange IP67 |
| Design | IM B5 (IM V1, IM V3) |
Applications
- Drive control integration: Integration with DRIVE-CLiQ-based drive systems.
- Motion control motor use: Use as a synchronous motor in motion control setups.
Frequently Asked Questions

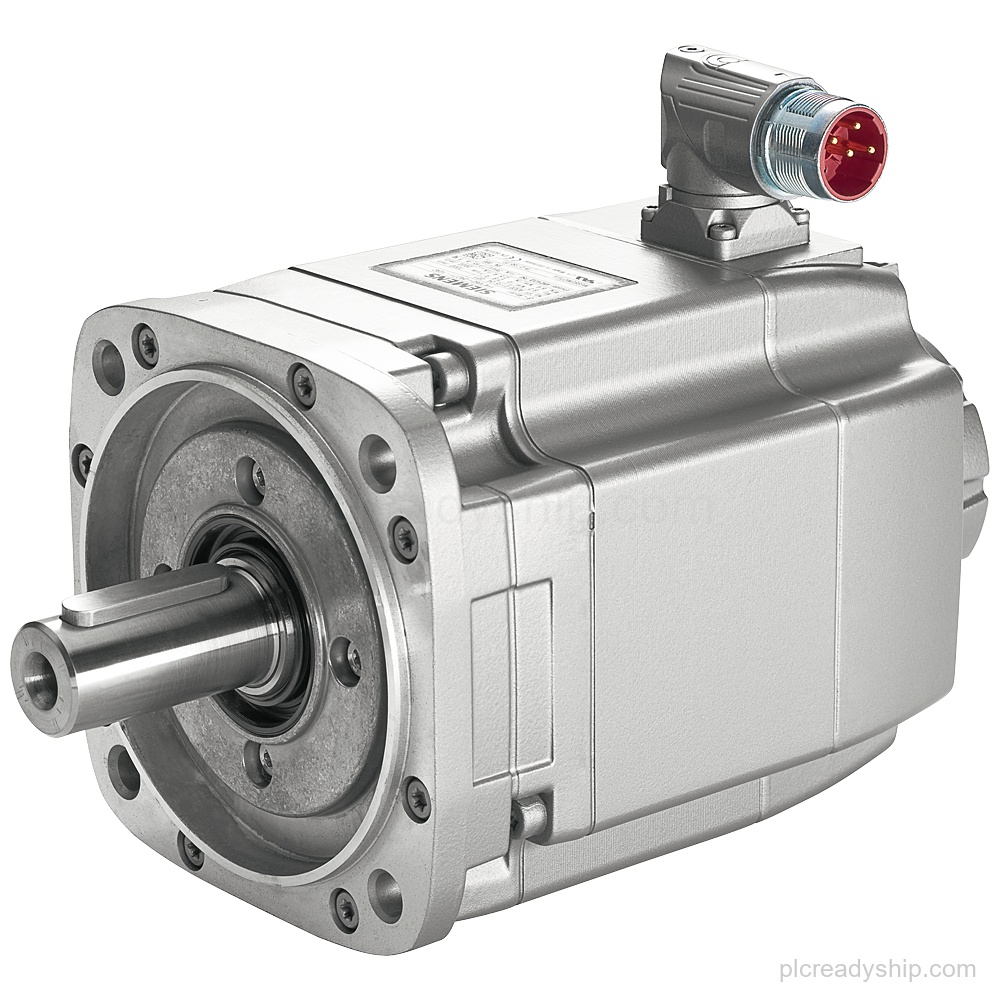

What is Siemens 1FK7033-4CF21-1UG2?
It is a SIMOTICS S synchronous motor.
What are the main ratings for 1FK7033-4CF21-1UG2?
PN=0.38kW, UDC=300V, M0=1.3Nm (100K), and NN=3000rpm.
Which feedback and interface does 1FK7033-4CF21-1UG2 use?
It uses a resolver multi-pole encoder system with a DRIVE-CLiQ interface.
What mechanical configuration does 1FK7033-4CF21-1UG2 have?
It has a plain shaft, without holding brake, and design acc. to Code I: IM B5 (IM V1, IM V3).
What should be confirmed before ordering 1FK7033-4CF21-1UG2?
Confirm the exact model number, requested quantity, destination, and stock and dispatch conditions before ordering.
