Key Features

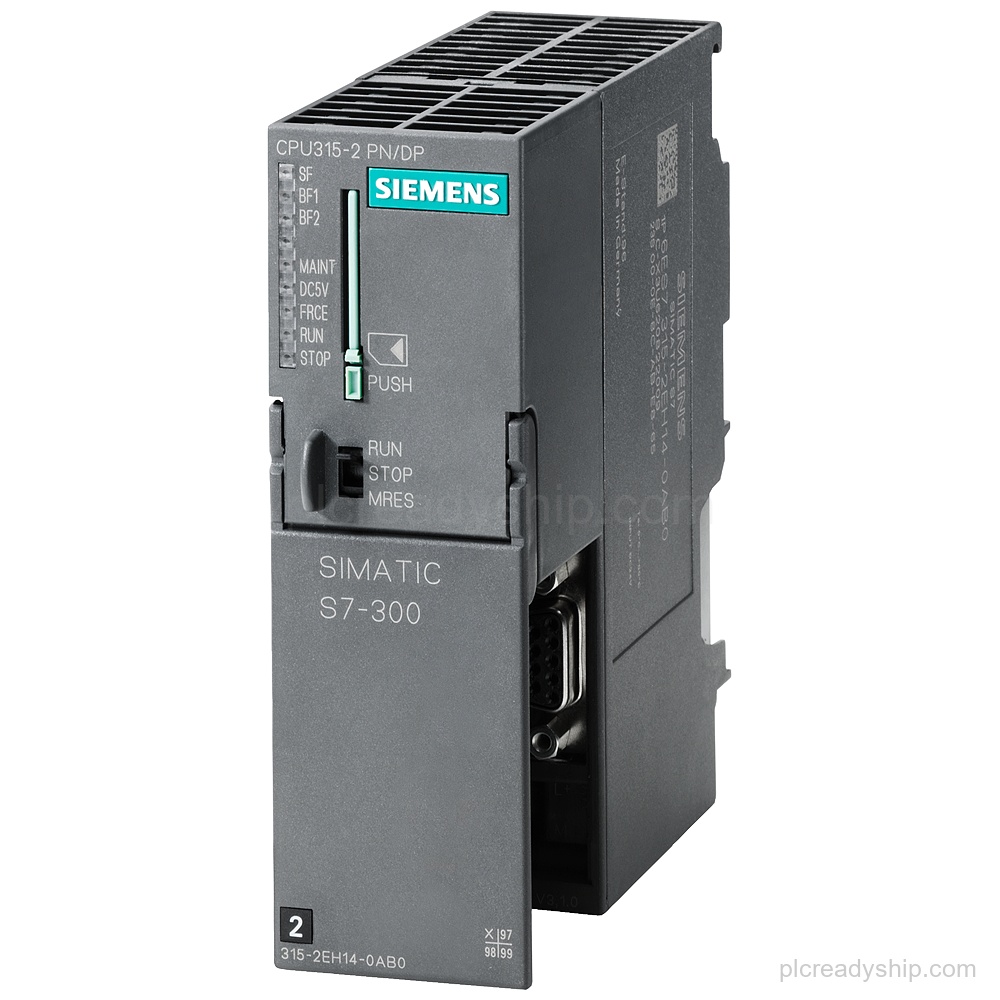

- CPU 315-2 PN/DP: Product type designation: CPU 315-2 PN/DP.
- 384 KB work memory: Integrated work memory: 384 kbyte.
- MPI/DP and PROFINET interfaces: 1st interface MPI/DP 12 Mbps and 2nd interface Ethernet PROFINET with 2-port switch.
- Micro Memory Card required: Micro Memory Card required.
Technical Summary
| Product type designation | CPU 315-2 PN/DP |
|---|---|
| Firmware version | V3.2 |
| HW functional status | 01 |
| Work memory | 384 kbyte |
| Supply voltage, rated value (DC) | 24 V |
| Supply voltage, permissible range, lower limit (DC) | 20.4 V |
| Supply voltage, permissible range, upper limit (DC) | 28.8 V |
| 1st interface MPI/DP, transmission rate, max. | 12 Mbps |
| 2nd interface Ethernet PROFINET, number of ports | 2 |
| 2nd interface Ethernet PROFINET, integrated switch | Yes |
Applications
- MPI/DP network integration: Connection through the 1st interface MPI/DP for communication on an MPI or PROFIBUS DP network.
- PROFINET network integration: Connection through the 2nd interface Ethernet PROFINET with 2-port switch for PROFINET communication.
Frequently Asked Questions
What is the exact Siemens order number and product type of this CPU?
The order number is 6ES7315-2EH14-0AB0 and the product type designation is CPU 315-2 PN/DP.
What memory and interface configuration does the CPU 315-2 PN/DP have?
It has 384 KB work memory, a 1st interface MPI/DP 12 Mbps, and a 2nd interface Ethernet PROFINET with 2-port switch.
What DC supply voltage range is specified for this CPU?
Rated value is 24 V DC, with a permissible range from 20.4 V to 28.8 V DC.
What should be confirmed before ordering this item for quotation and dispatch?
Confirm the exact order number 6ES7315-2EH14-0AB0, the requested quantity, and the destination so stock and dispatch conditions can be checked.
