Key Features
- 10.1" multi-touch display: 10.1" TFT LCD with Multi-Touch, 1 920 x 1 200 pixel resolution, and 800 cd/m2 luminance.
- 32 Gbyte memory and 512 Gbyte SSD: Integrated 32 Gbyte work memory with 512 Gbyte SSD.
- Wireless and communication interfaces: 1 industrial Ethernet interface, 2 USB interfaces, Wi-Fi, Bluetooth V5.3, and a global 4G LTE module.
- Built-in identification and scanning functions: Built-in 1D/2D bar code reader and built-in HF RFID reader module.
- Supply and protection details: External wide-range power supply, rated value (DC) 19 V, and IP65 degree of protection.
- Portable power source: Replaceable Lithium-ion battery with 3 500 mA·h capacity and 6 h battery runtime.
Technical Summary
| Design of the programming device | Mobile computer |
|---|---|
| Design of display | 10.1" TFT LCD with Multi-Touch |
| Horizontal image resolution | 1 920 pixel |
| Vertical image resolution | 1 200 pixel |
| Luminance | 800 cd/m2 |
| Processor type | Intel Core i5-1135G7 2.4 GHz |
| Memory capacity | 512 Gbyte |
| SSD | Yes |
| Type of memory | DDR4 SO-DIMM |
| Capacity | 3 500 mA·h |
| Battery runtime, min. | 6 h |
| Number of industrial Ethernet interfaces | 1 |
| Number of USB interfaces | 2 |
| Bluetooth radio standard | Yes; V5.3 |
| WLAN | 802.11 a/b/g/n/ac/ax and global 4G LTE module |
| Protocol for wireless transmission | Legic Prime, Legic Advant, ISO 15693, ISO 14443 A/B |
| Operating frequency (rated value) | 13.56 MHz |
| Range, max. | 30 mm |
| IP degree of protection | IP65 |
| Design of the power supply | External wide-range power supply; 3-pole |
| Rated value (DC) | 19 V |
Applications
- Mobile HMI operation: Mobile computer for operating and interacting with a 10.1" Multi-Touch display.
- Industrial network connection: Connection through 1 industrial Ethernet interface with 100 Mbps and 1000 Mbps support.
- Wireless identification and data capture: Reading 1D/2D bar codes and HF RFID data with the built-in reader modules.
Frequently Asked Questions
What is Siemens 6AV7880-4CB01-1AA1?

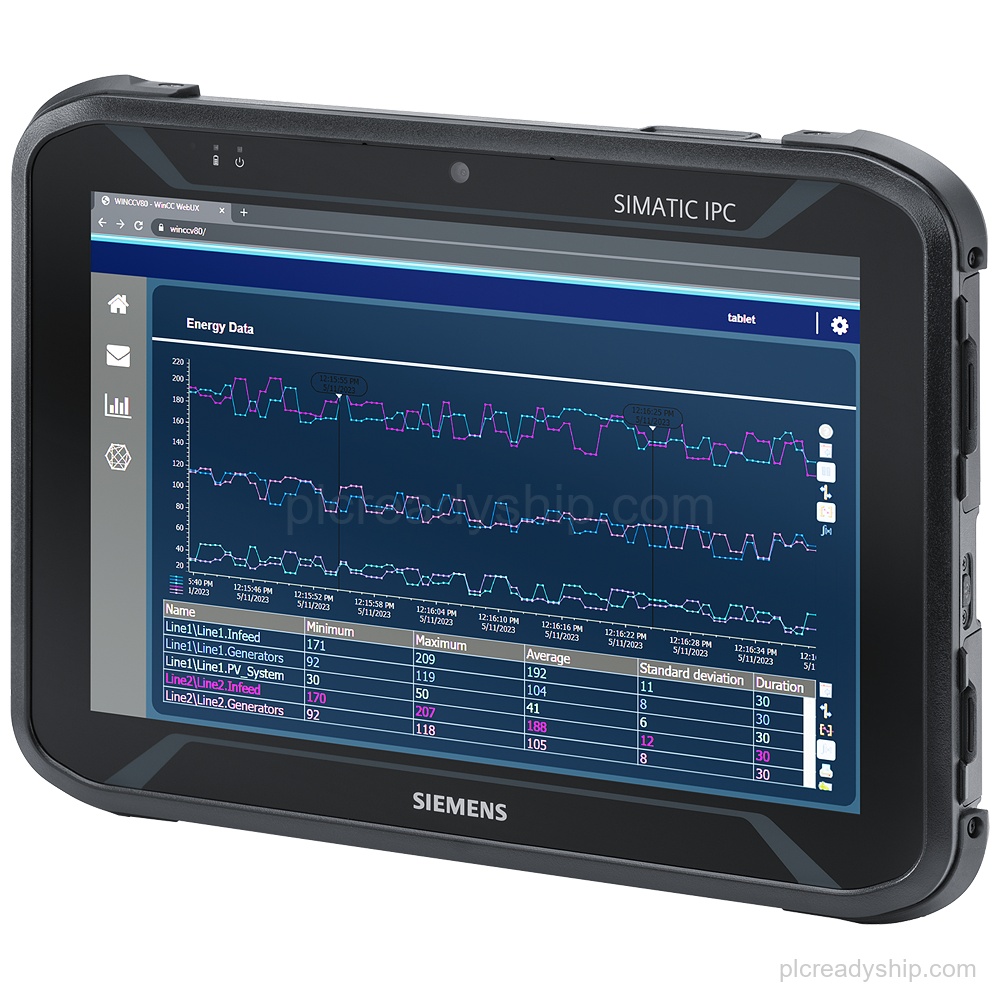

It is a SIMATIC IPC MD-34A mobile computer.
What display and resolution does 6AV7880-4CB01-1AA1 have?
It has a 10.1" TFT LCD with Multi-Touch, 1 920 pixel horizontal resolution, and 1 200 pixel vertical resolution.
Which interfaces and wireless options are included with 6AV7880-4CB01-1AA1?
It has 1 industrial Ethernet interface, 2 USB interfaces, Wi-Fi, Bluetooth V5.3, and a global 4G LTE module.
What power and battery details are listed for 6AV7880-4CB01-1AA1?
It uses an external wide-range power supply with rated value (DC) 19 V and includes a replaceable Lithium-ion battery with 3 500 mA·h capacity and 6 h runtime.
What should be confirmed before ordering 6AV7880-4CB01-1AA1?
Confirm stock and dispatch conditions, and select the required power supply cord for the destination before ordering.
