Key Features

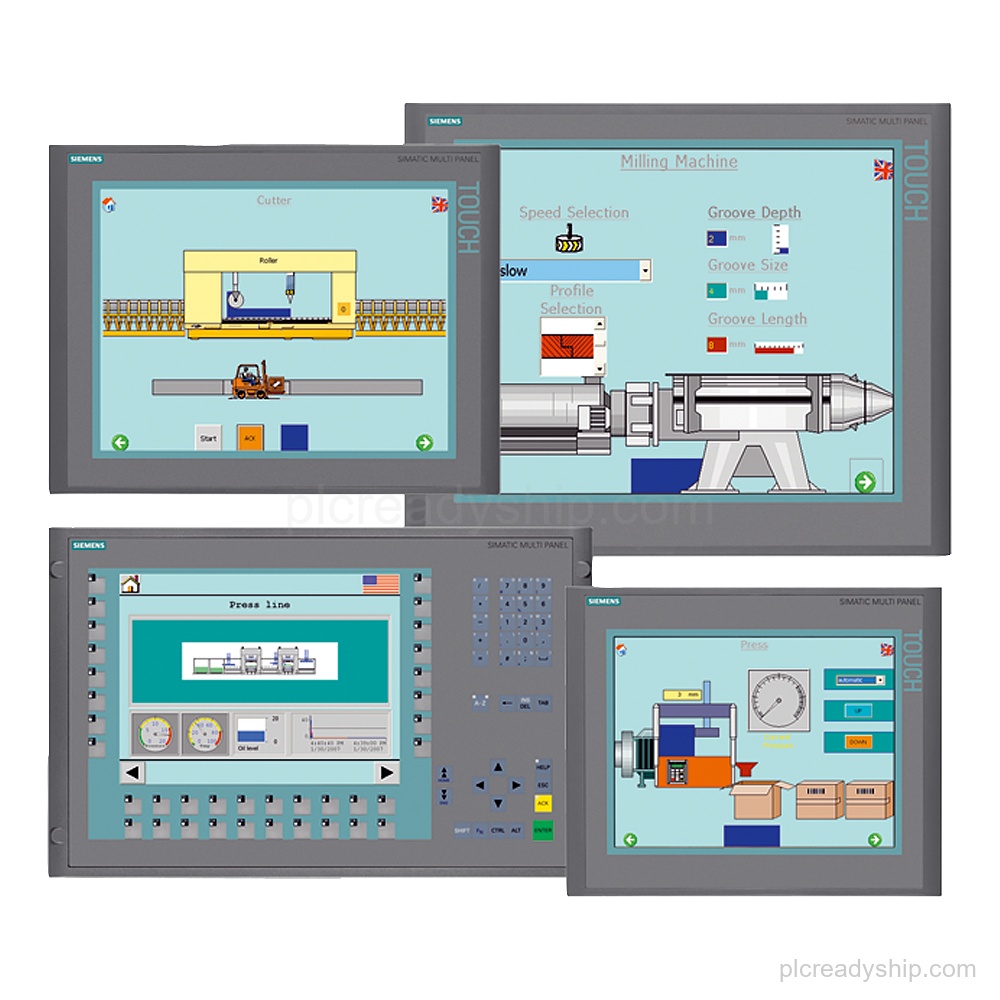

- 15 in TFT touch display: SIMATIC MP 377 15" Touch Multi Panel with a 15 in color TFT display and touch screen operation.
- Windows CE 5.0: Delivered with Windows CE 5.0.
- Communication interfaces: 1x RS 422, 1x RS 485, and 2x Ethernet (RJ45) interfaces.
- Protocol support: Supports PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, and MODBUS.
- Installation and protection data: Maximum permissible angle of inclination without external ventilation: 35°. Front protection: IP65. Rear protection: IP20.
Technical Summary
| Product type designation | MP377 15" touch |
|---|---|
| Screen diagonal | 15 in |
| Design of display | TFT |
| Color display | Yes |
| Horizontal image resolution | 1 024 pixel |
| Vertical image resolution | 768 pixel |
| Design as touch screen | Yes; analog, resistive |
| Type of supply voltage | DC |
| Current consumption (rated value) | 1.9 A |
| Active power input, typ. | 45.6 W |
| Interfaces/bus type | 1x RS 422, 1x RS 485, 2x Ethernet (RJ45) |
| Supports protocol for PROFINET IO | Yes |
Applications
- Operator interface and display: For machine and process operation with touch input on a 15 in HMI panel.
Frequently Asked Questions
What is the exact model of Siemens 6AV6644-0AB01-2AX0?
It is a SIMATIC MP 377 15" Touch Multi Panel.
What display does the Siemens 6AV6644-0AB01-2AX0 use?
It has a 15 in color TFT display with 1 024 pixel x 768 pixel resolution.
Which interfaces are available on the Siemens 6AV6644-0AB01-2AX0?
It has 1x RS 422, 1x RS 485, and 2x Ethernet (RJ45) interfaces.
What is the power supply requirement for the Siemens 6AV6644-0AB01-2AX0?
The supply voltage type is DC, with a rated current consumption of 1.9 A and typical active power input of 45.6 W.
